Numerical investigation on purposeful limitations of the anti-stall fin for an axial fan: one-factor analyses


Impact of anti-stall fin

Experimental validation

The experimental course of and facility of this research totally complied with the worldwide customary22. As proven in Fig. 6 (or Fig. 2), the outlet chamber setup was adopted, and a straight duct that has twice the axial size for the fan diameter was linked between the fan outlet and chamber inlet. The circulate settling means contained in the chamber had secured the correct porosity23. Relative humidity, barometric stress, and dry-bulb temperature had been measured to calculate the density. The density and rotational velocity had been respectively transformed as the identical values ​​with the computational setup. The circulate price was adjusted with nozzles and was calculated from the differential stress ((Delta {P}_{s})); the circulate price vary that might not be measured with a mix of nozzles was dealt with with a servo blower behind the chamber, and this was essential to compensate for the stress loss contained by the nozzles within the system. The stress and rotational velocity had been measured with stress manometers and a laser tachometer (or a stroboscope). The uncertainty for stress manometers, stroboscope, and dry-bulb temperature detectors was 0.001–0.005 kilo-pascals for the vary of 0–1.33 kilo-pascals, 0.1–1 revolutions-per-minute for the vary of 40–35,000 revolutions-per-minute, and 0.07 °C for the vary of 0–60 °C, respectively.

Determine 6
figure 6

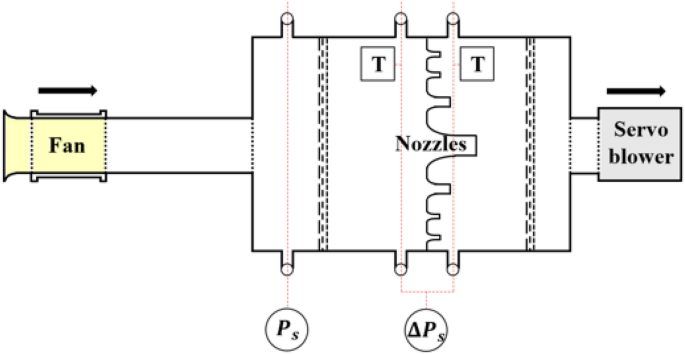

Schematic diagram of experimental check facility for outlet chamber setup.

Determine 7 represents the (Q)(P) curve for every case of none and ASF connected (left), and the rise or lower price of whole stress rise for the case of ASF connected (proper); right here, ASF akin to the reference set in Desk 2 was in contrast preferentially. Within the case of none, the optimistic gradients had been included within the stalling circulate charges lower than 0.8 ({varPhi }_{d}). Nevertheless, within the case of ASF connected, the optimistic gradients contained within the case of none had been fully reversed to grow to be unfavorable. The ASF-attached axial fan stably recovered efficiency degradation within the stalling circulate charges and allowed to type unfavorable gradients to 0.5 ({varPhi }_{d}). Though it could be a strict declaration, the ASF’s purposeful limitation needs to be evaluated by figuring out whether or not the (Q)(P) curve varieties unfavorable gradients within the circulate price vary over 0.5 ({varPhi }_{d}).

Determine 7
figure 7

(Q)(P) curve for every case of none and ASF connected (left) and enhance or lower price of whole stress rise with ASF (proper).

Anti-stalling mechanism

Every contour for circumferential velocity (({v}_{theta })), axial velocity (({v}_{a})), and static stress (({varPsi }_{s})) on the sectional aircraft close to the blade LE is proven in Figs. 9, 10, and 11, because the entrance view: the sectional aircraft relies on the sectional line in Fig. 8; Fig. 8 is an enlarged view for the viewing window in Fig. 4; Figs. 9, 10, and 11 have every legend on the left, and the legend on Fig. 8 is for subsequent dialogue concerning (Q)-criterion; the circumferential velocity contour (Fig. 9) signifies the next worth because it turns into stronger in opposition to the blade’s rotational course, and the axial velocity contour (Fig. 10) signifies the next worth because the part towards the downstream turns into stronger; concentric circles in every sectional aircraft mark each 0.1 from the hub (0) to the shroud (1). Within the case of none, every unfavorable portion of ({v}_{theta }) and ({v}_{a}) (Figs. 9a, 10a) had been steadily developed over the thicker span because the circulate price decreased. Right here, the portion of unfavorable ({v}_{theta }) was thicker than that of unfavorable ({v}_{a}) at every circulate price level, i.e., ({v}_{theta }) contained a backward (backflow) and ahead parts from the shroud to the deeper spans; this implies recirculation within the axial course was fashioned with rotation within the circumferential course. Nevertheless, these circulate patterns had been largely managed by ASF (see Figs. 9b, 10b). This might be confirmed as the primary trigger that ASF may suppress the optimistic gradients within the stalling circulate charges. In Fig. 11a for the case of none, the static stress decreased because the circulate price decreased. From a theoretical perspective, a lower in circulate price means a rise in inlet static stress; nevertheless, as proven in Fig. 10a, the backflow may act as a blockage within the circulate passage, inflicting a rise in ({v}_{a}) of major stream. Alternatively, in Fig. 11b for the case of ASF connected, the static stress elevated because the circulate price decreased. In the meantime, every stress and suction facet of ASF (Fig. 8) might be recognized with Fig. 11b.

Determine 8
figure 8

Information of viewing window in Fig. 4.

Determine 9
figure 9

Circumferential velocity (({v}_{theta })) contour on sectional aircraft for every (a) case of none and (b) ASF connected (0.5–0.7 ({varPhi }_{d})).

Determine 10
figure 10

Axial velocity (({v}_{a})) contour on sectional aircraft for every (a) case of none and (b) ASF connected (0.5–0.7 ({varPhi }_{d})).

Determine 11
figure 11

Static stress (({varPsi }_{s})) contour on sectional aircraft for every (a) case of none and (b) ASF connected (0.5–0.7 ({varPhi }_{d})).

As additional particulars for the interior circulate discipline, Figs. 12 and 13 had been illustrated: it was primarily based on the information in Fig. 8; the red-circumferential traces denote the axial coordinates each 0.1 ({D}_{2}), and the blade LE line corresponds to 0.3 on the (x)-axis in Fig. 3; the limiting streamlines, which don’t have any legends (white), had been plotted on the imaginary planes passing by the axis; the imaginary planes handled as clear in Fig. 8, however opaque (black) in Figs. 12 and 13; a vortex identification technique ((Q)-criterion24), was employed with iso-surface that was coated with a circumferential velocity contour with the legend on Fig. 8, and the circumferential velocity contour signifies the next worth because it turns into stronger in opposition to the blade’s rotational course; the figures could be centered on the shroud as a result of it’s a three-dimensional view with superimposed imaginary planes. Within the case of none (Fig. 12), the backflow (limiting streamline) and rotating parts ((Q)-criterion) from the blade LE had been strongly developed towards the upstream because the circulate price decreased. As anticipated, the backflow and rotating parts had been largely suppressed within the case of ASF connected (Fig. 13). The vortexes remoted on the ASF’s stress facet nearly misplaced their velocity and couldn’t go to the suction facet in order that it was troublesome to trigger any instability contained in the circulate passage. From the mixture with Figs. 9 and 10, the residual backflow and rotating parts within the fin-to-fin pitch didn’t penetrate 0.9 spans or much less. From the outcomes on this part, the ASF’s mechanism might be said as comply with: prevening the event of backflow and re-directing the circumferential velocity parts to the axial course. In the meantime, the above footnotes for Figs. 12 and 13 could be equally utilized to the figures within the part under.

Determine 12
figure 12

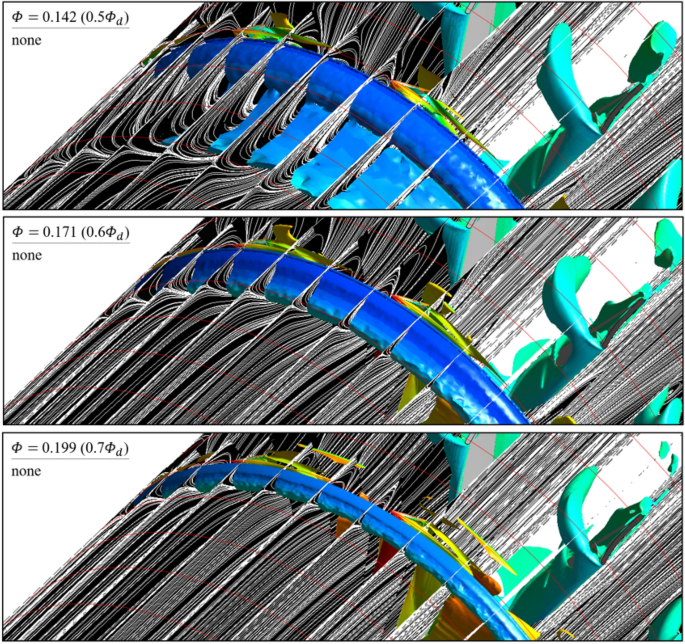

Inner circulate discipline with limiting streamlines and (Q)-criterion for case of none (0.5–0.7 ({varPhi }_{d})).

Determine 13
figure 13

Inner circulate discipline with limiting streamlines and (Q)-criterion for case of ASF connected (0.5–0.7 ({varPhi }_{d})); anti-stalling mechanism.

One-factor analyses

Radial size

From the reference set in Desk 2, ({l}_{r}) was evaluated inside the variable vary. Determine 14a exhibits the (Q)(P) curve (left) and the gradient (({a}_{{x}_{1}leftrightarrow {x}_{2}}); proper) in every circulate price vary:

$${a}_{{x}_{1}leftrightarrow {x}_{2}}=frac{{varPsi }_{x2}-{varPsi }_{x1}}{{varPhi }_{x2}-{varPhi }_{x1}} , left({x}_{2}={x}_{1}+{10}^{-1}proper)$$

(5)

the place subscripts ({x}_{1}) and ({x}_{2}) denote the a number of of normalized circulate price primarily based on the design circulate price. The ASF with ({l}_{r}/{D}_{2}=) 0.01625 misplaced its operate at 0.5 ({varPhi }_{d}). It’s because the rotating circulate parts, which needs to be blocked by the ASF, handed over the ASF’s backside and invaded the suction facet (see Fig. 14b). Accordingly, separated vortex cores had been twisted collectively within the fin-to-fin pitch, and its circumferential velocity was increased than the case of reference set at 0.5 ({varPhi }_{d}) (Fig. 13). The backflow sample between the blades and information vanes was moderately just like the case of none at 0.5 ({varPhi }_{d}) (Fig. 12); the backflow grew to become stronger towards downstream. From an analogous mechanism (see Fig. 14c), the ASF with ({l}_{r}/{D}_{2}=) 0.01 misplaced its operate within the circulate price vary lower than 0.6 ({varPhi }_{d}). As a reminder of Desk 1, ({delta }_{t}/{D}_{2}=) 0.0028, the place ({delta }_{t}) denotes the tip clearance between a blade tip and casing. In the appropriate graph of Fig. 14a, ({l}_{r}) grew to become progressively delicate at decrease circulate charges. Alternatively, a reasonably radical and abrupt tendency was confirmed on the level the place the ASF misplaced its operate for ({l}_{r}). Which means if the ASF has an acceptable ({l}_{r}), its operate will be retained nearly unchanged. From the outcomes, the purposeful limitation for ({l}_{r}) might be proposed as ({l}_{r}/{D}_{2}=) 0.0225 or extra.

Determine 14
figure 14

Analysis for radial size (({l}_{r})) of ASF: (a) (Q)(P) curve (left) and the gradient (proper) in every circulate price vary; (b) Inner circulate discipline for ({l}_{r}/{D}_{2}=) 0.01625 at 0.5 ({varPhi }_{d}); (c) Inner circulate discipline for ({l}_{r}/{D}_{2}=) 0.01 at 0.6 ({varPhi }_{d}).

Axial size

The analysis for ({l}_{a}) was carried out from Fig. 15. In Fig. 15a, the ASF with ({l}_{a}/{D}_{2}=) 0.05 misplaced its operate at 0.5 ({varPhi }_{d}). Particularly, the tendency was extra dramatic than ({l}_{r}), i.e., ({l}_{a}) was troublesome to be analyzed as being delicate to circulate price, and the ASF misplaced its operate extra dramatically. In Fig. 15b, the backflow and rotating parts weren’t sufficiently blocked as ({l}_{a}) was shortened in order that the unfavorable circulate patterns may go the ASF’s LE. Right here, a backflow akin to the axial size of roughly 0.2–0.3 ({D}_{2}) was developed inside the fin-to-fin pitch, akin to the case of none at 0.5 ({varPhi }_{d}) (Fig. 12). This was accompanied by the rotating parts, as anticipated. Though considerably filtered vortexes had been confirmed on the ASF’s suction facet, it was unimaginable to satisfy the operate of ASF. The purposeful limitation for ({l}_{a}) might be proposed as ({l}_{a}/{D}_{2}=) 0.075 or extra.

Determine 15
figure 15

Analysis for axial size (({l}_{a})) of ASF: (a) (Q)(P) curve (left) and the gradient (proper) in every circulate price vary; (b) Inner circulate discipline for ({l}_{a}/{D}_{2}=) 0.05 at 0.5 ({varPhi }_{d}).

Axial hole

Determine 16 depicts a one-factor evaluation for (delta); (delta) could be essentially the most vital parameter, as talked about in Sect. 2. In Fig. 16a, the ASF exhibiting (delta /{D}_{2}=) 0.05 misplaced its operate at 0.7 ({varPhi }_{d}). The tendency to lose operate was gradual, in contrast to that of ({l}_{r}) and ({l}_{a}); (delta) can also acquire a radical or dramatic tendency like ({l}_{r}) and ({l}_{a}) when it turns into wider past the variable vary, however it’s emphasised that the outline was premised on the purposeful limitation (reversal of gradient) outlined on this research. From the empirical background, a rise in (delta) means that the likelihood for suppressing the backflow from blade LE disappears steadily. As (delta) will increase, the annular vortex core confirmed in Fig. 12 can steadily get better its authentic depth for every circulate price. Because of this, the formation nearly equivalent to Fig. 12 was confirmed in Fig. 16b, for a similar circulate price (0.7 ({varPhi }_{d})). The rotating parts interfered with the ASF’s TE; nevertheless, it was inadequate to type a unfavorable gradient on the (Q)(P) curve. Even Fig. 16b exhibits that the entire patterns of the interior circulate discipline seemed just like the case of none; the ASF didn’t act any efficiency. Thus, the purposeful limitation on (delta) needs to be introduced as (delta /{D}_{2}=) 0.04 or much less. As a warning earlier than making use of the ASF, a earlier evaluation on the meridional aircraft is strongly advisable to stop contact between the ASF’s TE and rotor’s LE; the identical is true within the case of high-pressure followers (or fluid equipment) that will have issues with thrust.

Determine 16
figure 16

Analysis for axial hole ((delta)) of ASF: (a) (Q)(P) curve (left) and the gradient (proper) in every circulate price vary; (b) inner circulate discipline for (delta /{D}_{2}=) 0.05 at 0.7 ({varPhi }_{d}).

Variety of fins

From Fig. 17, a one-factor evaluation was carried out for (Z). Primarily based on the 2 graphs in Fig. 17a, the ASF within the case of (Z=) 4 misplaced its operate at 0.5 ({varPhi }_{d}), and the tendency might be analyzed as radical. In Fig. 17b, the viewing window was prolonged as indicated in Fig. 4 to indicate one full fin-to-fin pitch. The annular vortex core inside one pitch appeared extra restrained than that seen on the similar circulate price (0.5 ({varPhi }_{d})) in Fig. 12; nevertheless, the longer size of 1 pitch as a result of smaller (Z) brought on that the backflow and rotating parts couldn’t be sufficiently suppressed. Though the ASF had the identical dimensions because the reference set solely aside from (Z), strongly developed unfavorable circulate patterns had been noticed within the ASF’s stress facet in addition to the ASF’s suction facet. Due to this fact, the purposeful limitation on (Z) was recognized as at the least 7 or extra. For making use of the ASF, if an ASF-attached casing duct is individually manufactured to get replaced with the non-ASF casing duct (current one), i.e., if a technique apart from on-site welding or fastening is utilized, it could be advisable to pick (Z) equal to the variety of fan’s blades; by positioning the fins into every blade-to-blade pitch, the ASF-attached casing duct will be pushed in a course parallel to the axis, with out disassembling the rotor.

Determine 17
figure 17

Analysis for variety of fins ((Z)) of ASF: (a) (Q)(P) curve (left) and the gradient (proper) in every circulate price vary; (b) Inner circulate discipline for (Z=) 4 at 0.5 ({varPhi }_{d}).

Tangential angle

The analysis for (theta) was carried out for every course (+ and (-)) as indicated in Fig. 2; ‘ + ’ denotes opposition to the blade’s rotational course, and ‘(-)’ denotes the blade’s rotational course. First, as proven in Fig. 18a, the ASF with (theta =) + 60° misplaced its operate at 0.5 ({varPhi }_{d}) when (theta) was given to be reverse to the blade’s rotational course, and the tendency was radical. The project of +(theta) to the ASF implies that the backflow and rotating parts, which needs to be remoted on the ASF’s stress facet, can obtain a squeezing impact within the recessed area. Accordingly, though the interior circulate sample within the fin-to-fin pitch (Fig. 18b) carefully resembled the situation of the reference set (Fig. 13) at 0.5 ({varPhi }_{d}), the backflow and rotating parts close to the ASF’s stress facet brought on an extra backflow towards upstream amounting to roughly 0.5 ({D}_{2}); this backflow was even stronger than that of none at 0.5 ({varPhi }_{d}). Determine 19 exhibits the outcomes during which (theta) was given in the identical course because the blade’s rotational course. The ASF with (theta =) (-) 60° misplaced its operate at 0.5 ({varPhi }_{d}), whereas the tendency was not radical (see Fig. 19a). On this case, it appeared that the non-isolated circulate on the ASF’s stress facet prolonged its drive alongside the circumferential course moderately than upstream and overflowed to the suction facet (see Fig. 19b). From the outcomes, the purposeful limitation for (theta) might be introduced inside (pm) 45°. Right here, the insensitivity of ASF to (theta) will be thought of as an extra benefit as a result of it doesn’t require a excessive focus throughout the welding or fastening course of. In the meantime, Fig. 20 depicts the re-presentation of every proper graph in Figs. 14a, 18a, and 19a when it comes to ({l}_{r}) to be able to take into account a correlation between ({l}_{r}) and (theta); the size from the casing to the meanline of ASF’s backside was estimated primarily based on the traditional to the casing-fin intersection. The ASF with (pm theta) misplaced its operate at 0.5 ({varPhi }_{d}) when ({D}_{2})-normalized ({l}_{r}) (({l}_{r}/{D}_{2})) was estimated as roughly 0.029. Due to this fact, it’s extra advantageous to connect the ASF exhibiting correspondingly shorter ({l}_{r}) with out (theta) moderately than intentional (theta).

Determine 18
figure 18

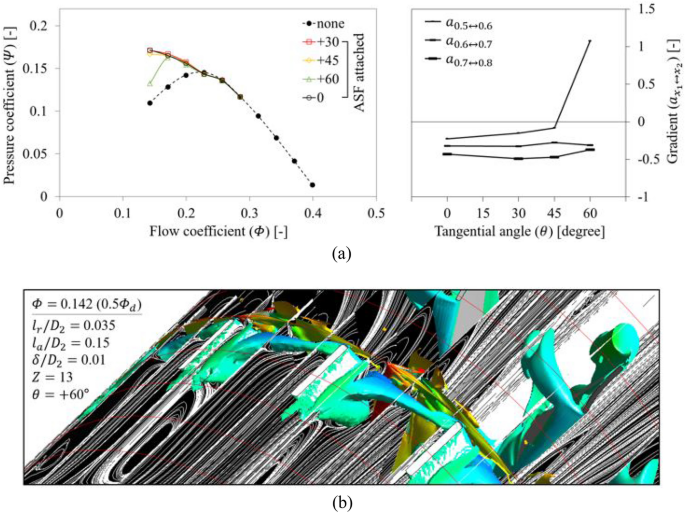

Analysis for positive-tangential angle ((+theta)) of ASF: (a) (Q)(P) curve (left) and the gradient (proper) in every circulate price vary; (b) Inner circulate discipline for (theta =) (+) 60° at 0.5 ({varPhi }_{d}).

Determine 19
figure 19

Analysis for negative-tangential angle ((-theta)) of ASF: (a) (Q)(P)curve (left) and the gradient (proper) in every circulate price vary; (b) Inner circulate discipline for (theta =) (-) 60° at 0.5 ({varPhi }_{d}).

Determine 20
figure 20

Re-presentation of every proper graph in Fig. 14a (black), 18a (blue), and 19a (purple) when it comes to radial size (({l}_{r})).
